FixedNdPoint Class Template Reference

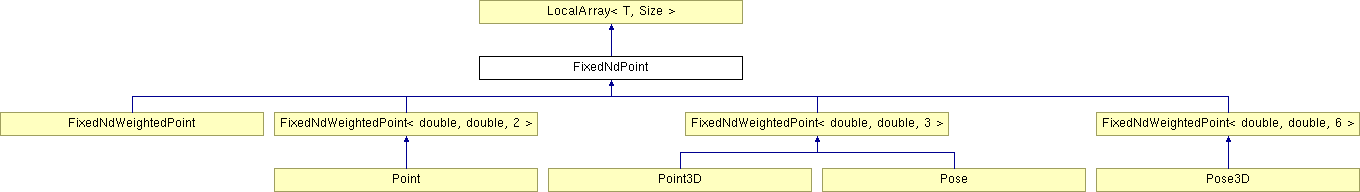

Inheritance diagram for FixedNdPoint:

List of all members.

---

Detailed Description

template<class T, int Size>
class FixedNdPoint< T, Size >

This class provides points with fixed-sized dimension (known at compile time).

All storage is local to the class.

Author:

Bill Smart

Version:

1.0

Date:

June 2005

Definition at line 335 of file Geometry.H.

Public Member Functions
	FixedNdPoint ()
	FixedNdPoint (const T &value)
	FixedNdPoint (const NdPoint< T > &point)
	~FixedNdPoint ()
Dimension
int	n () const
	Returns: The dimension of the point. */
Operators
FixedNdPoint< T, Size >	operator+ (const FixedNdVector< T, Size > &vector) const
	Parameters: [in]  vector  The vector to add.
FixedNdPoint< T, Size >	operator- (const FixedNdVector< T, Size > &vector) const
	Parameters: [in]  vector  The vector to subtract.
FixedNdPoint< T, Size > &	operator+= (const FixedNdVector< T, Size > &vector)
	Parameters: [in]  vector  The vector to move the point along.
FixedNdPoint< T, Size > &	operator-= (const FixedNdVector< T, Size > &vector)
	Parameters: [in]  vector  The vector to move the point backwards along.
FixedNdVector< T, Size >	operator- (const FixedNdPoint< T, Size > &point) const
	Parameters: [in]  point  The second point.
double	distance (const FixedNdPoint< T, Size > &point) const
	Parameters: [in]  point  The second point.

---

Constructor & Destructor Documentation

FixedNdPoint

(

)

[inline]

Definition at line 337 of file Geometry.H.

FixedNdPoint

(

const T &

value

)

[inline]

Allocate a point and set all of its elements to the given value.

Parameters:

[in]

value

The value to set the elements to.

Definition at line 340 of file Geometry.H.

FixedNdPoint

(

const NdPoint< T > &

point

)

[inline]

Definition at line 341 of file Geometry.H.

~FixedNdPoint

(

)

[inline]

Definition at line 342 of file Geometry.H.

---

Member Function Documentation

int n

(

)

const [inline]

Returns:

The dimension of the point. */

Definition at line 349 of file Geometry.H.

FixedNdPoint<T, Size> operator+

(

const FixedNdVector< T, Size > &

vector

)

const [inline]

Parameters:

[in]

vector

The vector to add.

Returns:

The resulting point.

Definition at line 357 of file Geometry.H.

FixedNdPoint<T, Size> operator-

(

const FixedNdVector< T, Size > &

vector

)

const [inline]

Parameters:

[in]

vector

The vector to subtract.

Returns:

The resulting point.

Definition at line 362 of file Geometry.H.

FixedNdPoint<T, Size>& operator+=

(

const FixedNdVector< T, Size > &

vector

)

[inline]

Parameters:

[in]

vector

The vector to move the point along.

Returns:

The modified point.

Definition at line 368 of file Geometry.H.

FixedNdPoint<T, Size>& operator-=

(

const FixedNdVector< T, Size > &

vector

)

[inline]

Parameters:

[in]

vector

The vector to move the point backwards along.

Returns:

The modified point.

Definition at line 373 of file Geometry.H.

FixedNdVector<T, Size> operator-

(

const FixedNdPoint< T, Size > &

point

)

const [inline]

Parameters:

[in]

point

The second point.

Returns:

The vector from the current point to the given point.

Definition at line 379 of file Geometry.H.

double distance

(

const FixedNdPoint< T, Size > &

point

)

const [inline]

Parameters:

[in]

point

The second point.

Returns:

The Euclidean distance between the points.

Definition at line 388 of file Geometry.H.

---

The documentation for this class was generated from the following file:

• /home/fwph/code/wurde/rde/core/Geometry.H

---
